1. Technical parameter
| Model | Fiber laser cutting machine |

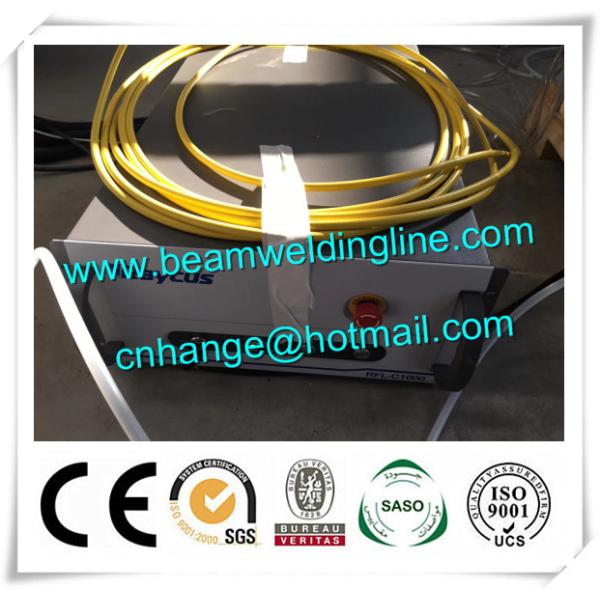

| Laser type | Raycus-1500W |
| Laser wavelength | 1080nm±5 |
| Laser maximum power | 1500W |

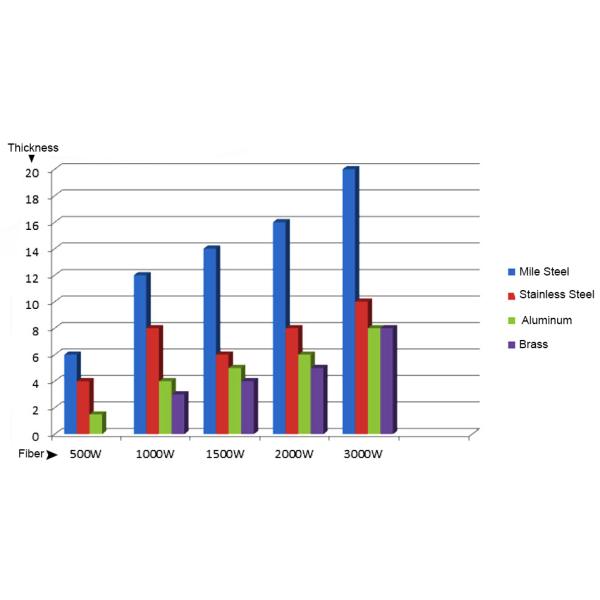

| Maximum cutting thickness | Carbon steel 14mm, Stainless steel 6mm, Brass 5mm |
| Total power consumption | <10KW |
| Working size | 3000*1500mm |
| Maximum cutting speed | 0-80m/min (depending on the material and thickness) |
| X, Y, Z axis orientation precision | ≤±0.05mm/m |
| X, Y, Z axis repeat precision | ≤±0.03mm/m |
| Minimum line width | ≤0.15mm |
| Maximum empty running speed | 120m/min |
| Driving way | Japanese YASKAWA servo motors system |
| Transmission way | Y-axis imported gear rack double driver, X-axis imported ball screw |
| Cooling system | Water cooling |
| Continous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 220V/ 50Hz or 60Hz |
2. Machine features
- Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
- The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.
- Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.
- Applicable industries: glasses, jewelry, kitchen ware, chassis and cabinet, metal pipe, lamp&lanterns, metal ware, hardware, precision machinery, auto parts, elevator, nameplate, advertisement, electronics, toys and other industries. metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm.
